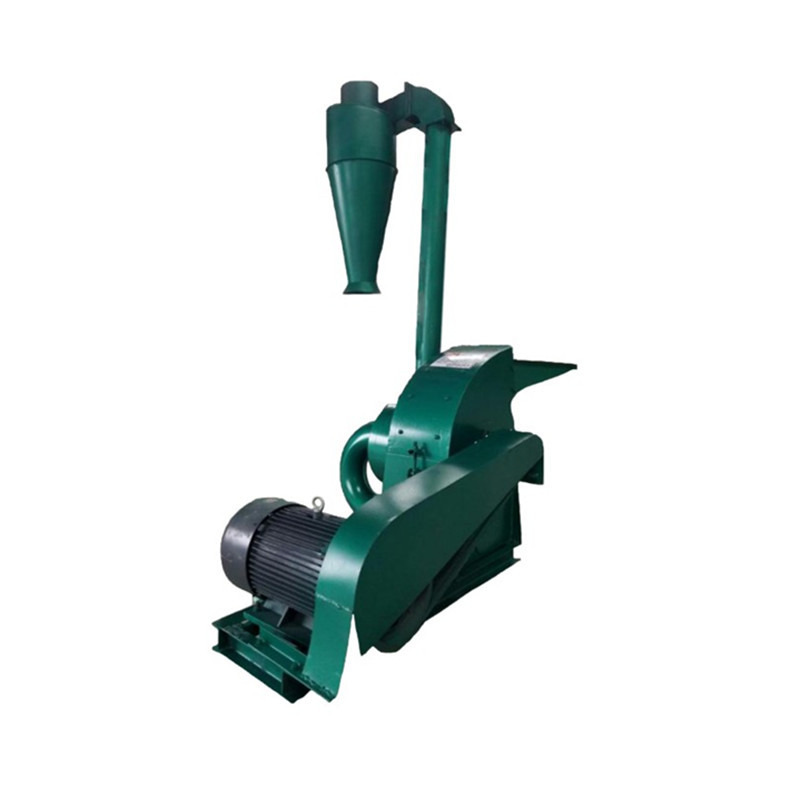

1.Shredder is a tangential feed hammer mill.Can be crushed all kinds of branches, bark, corn rod, peanut shell, hay, cotton pole, etc.This series of pulverizer has the advantages of simple structure, high production efficiency, convenient operation, reliable use and easy maintenance; it is suitable for all kinds of users.
2.The structure and working principle of a hammer pulverizer:
3.The pulverizer consists of feed hopper, upper and lower body, rotor, sieve, fan, feed pipe and so on.Users can be equipped with storage bags or silo according to their own needs.After entering the comminution chamber from the feed hopper, the material is crushed by a high speed rotating hammer.Driven by airflow, the broken matter is continuously crushed along the outer edge of the rotor with the impact, collision and rubbing of hammers, tooth plates, and sieve plates.
4.The pulverized particles are quickly transported through the sieve hole to the storage bag or silo because of the centrifugal pressure of the rotor and the suction force of the fan.
Model |
Capacity (kg/h) |
Power (kw) |
Hammer number
|
Spindle running (rpm/min) |
|
200 |
9FQ |
80-100 |
2.2 |
16 |
1440.00 |
9FC |
100-120 |
2.2 |
16 |
4000.00 |
|
400 |
9FQ |
300-700 |
7.5 |
24 |
2780.00 |
9FC |
800-1000 |
7.5 |
16 |
4100.00 |
|
500 |
9FQ |
550-1500 |
11 |
24 |
2960.00 |
9FC |
800-1600 |
15 |
24 |
4000.00 |
|
|
9FQ |
800-2000 |
22 |
24 |
2960.00 |
9FQ50-40 |
1500-2500 |
22 |
24 |
4000.00 |
|
9FQ50-50 |
2500-4500 |
30 |
30 |
3440.00 |
|
9FQ50-60 |
3500-5000 |
37 |
36 |
3440.00 |
1.The straw mill is equipped with a rolling bearing spindle at one end of the housing.High Speed rotation of Spindle driven by Motor and fixed on Spindle.The straw mill makes the grinding blocks on the turbine and screen ring reasonable and compact, so that the materials are closely rubbed in the rotating airflow and ground with a strong impact.In the between the blade and the grinding block, the material was ground again, and the material was crushed to 1-30mm by adjusting the screen mesh.
9fc series grinder is equipped with cutter, which can process dried corn straw, dry sweet potato seedlings, dry weeds, corn straw, sweet potato seedlings, green weeds, green vegetables, sweet potato, potato and other wet feed.
2.It can avoid the burning of crop straw, protect the environment and develop renewable energy effectively. This machine has reliable performance, simple operation and convenient operation. It is the first choice equipment for breeders and feed processing factories.
